NEUTRIK CRIMP TOOLS - Co-axial connectors

12 items
NEUTRIK HX-R-BNC CRIMP TOOL (without die-set)
NEUTRIK HX-R-BNC CRIMP TOOL (without die-set)NEUTRIK DIE-R-BNC-PDC DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNCX-PDG DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-PG DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-PJ DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-PS DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-PU DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNCX-PU DIE SET For HX-R-BNC crimp tool+4NEUTRIK DIE-R-BNC-PY DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-UG DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-X DIE SET For HX-R-BNC crimp toolNEUTRIK DIE-R-BNC-ZPLUS DIE SET For HX-R-BNC crimp tool

A range of crimp tools, and die sets, required to assemble Neutrik Rear Twist and Push-Pull series BNC connectors.

Crimp dies are supplied as a pair and must be ordered in addition to the crimp tool.

All die-sets have a 1.6mm pin crimping cavity (except size X which is 1.75 and ZPLUS which is 1.8). Die-sets also have one or more larger cavities for crimping the connector ferrules, making some sets suitable for more than one connector size. Cavities sizes are indicated by the letters at the end of the description.

Note: The Neutrik letter code indicating screen crimp die sizes do not relate to the Canford cable group. See Coaxial connector selection guide for Canford cable groups.

Crimp tool HX-R-BNC

The HX-R-BNC ‘plier’ type tool has a parallel die motion and ratchet action to ensure accurate and complete closure of the dies and a perfect crimp termination.

Crimp die Centre pin crimp Centre pin crimp style Hex crimp cavity 1 Hex crimp cavity 2 Hex crimp cavity 3
DIE-R-BNC-PDC 1.6mm Square 6.47mm 4.53mm 4.06mm
DIE-R-BNCX-PDG 1.07mm Square 6.47mm 5.00mm 4.53mm
DIE-R-BNC-PG 1.6mm Square 6.47mm 5.00mm -
DIE-R-BNC-PJ 1.6mm Square 6.47mm 5.41mm -

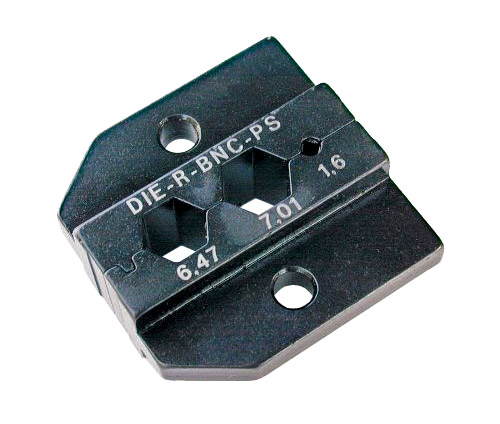

DIE-R-BNC-PS 1.6mm Square 6.47mm 7.01mm -

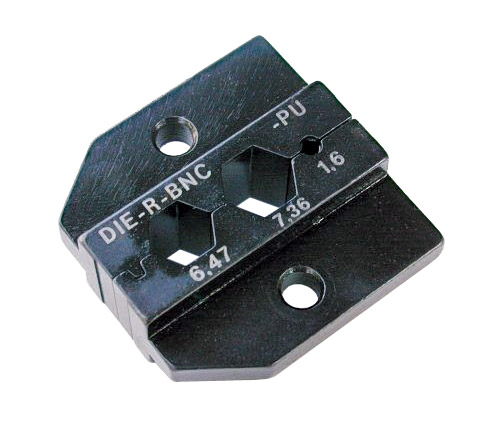

DIE-R-BNC-PU 1.6mm Square 6.47mm 7.36mm -

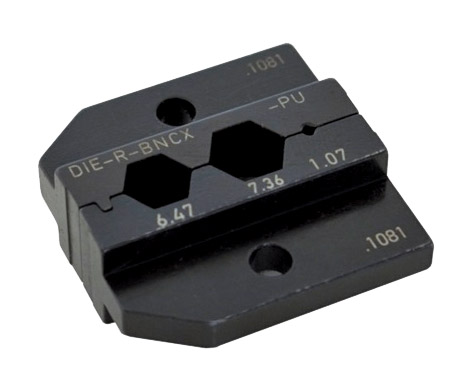

DIE-R-BNCX-PU 1.07mm Square 6.47mm 7.36mm -
DIE-R-BNC-PY 1.6mm Square 6.47mm 8.23mm -
DIE-R-BNC-UG 1.6mm Square 7.36mm 5.00mm -
DIE-R-BNC-X 1.75mm Hex 9.73mm - -
DIE-R-BNC-ZPLUS 1.8mm Square 10.00mm - -
Description Price $
ex. VAT 		Add to basket
Delivery
NEUTRIK HX-R-BNC CRIMP TOOL (without die-set) Stock code: 48-574
4 in stock Need more?
$286.89
NEUTRIK DIE-R-BNC-PDC DIE SET For HX-R-BNC crimp tool Stock code: 48-560
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
$217.33
NEUTRIK DIE-R-BNCX-PDG DIE SET For HX-R-BNC crimp tool Stock code: 48-563
1 in stock Need more?
$224.67
NEUTRIK DIE-R-BNC-PG DIE SET For HX-R-BNC crimp tool Stock code: 48-564
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$226.11
NEUTRIK DIE-R-BNC-PJ DIE SET For HX-R-BNC crimp tool Stock code: 48-565
Ordered on demand, cancellations may incur charges, available in 1‑2 months. Need it sooner? Call us
$220.21
NEUTRIK DIE-R-BNC-PS DIE SET For HX-R-BNC crimp tool Stock code: 48-566
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$222.57
NEUTRIK DIE-R-BNC-PU DIE SET For HX-R-BNC crimp tool Stock code: 48-567
3 in stock Need more?
$221.00
NEUTRIK DIE-R-BNCX-PU DIE SET For HX-R-BNC crimp tool Stock code: 48-572
Out of stock but available to backorder, expected in 3‑4 weeks. Need it sooner? Call us
$217.33
NEUTRIK DIE-R-BNC-PY DIE SET For HX-R-BNC crimp tool Stock code: 48-568
Ordered on demand, cancellations may incur charges, available in 1‑2 months. Need it sooner? Call us
$211.04
NEUTRIK DIE-R-BNC-UG DIE SET For HX-R-BNC crimp tool Stock code: 48-585
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$240.52
NEUTRIK DIE-R-BNC-X DIE SET For HX-R-BNC crimp tool Stock code: 48-569
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$244.18
NEUTRIK DIE-R-BNC-ZPLUS DIE SET For HX-R-BNC crimp tool Stock code: 48-586
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
$238.16
