The OTR-1441 and OTR-1442 are self-contained single-fibre transmission systems (transmitter and receiver) for the transport of 4K (12G uncompressed) video split over four separate 3G HD-SDI links with resolutions up full 3840x2160 and 4096x2160 50/59.94/60 Hz. The four SDI channels in the OTR yellobriks are however fully independent and will automatically detect and re-clock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit, so as an alternative to a single 4K SDI signal they may be used for any combination of up to four SDI signals, possibly with different formats, bit-rates and embedded audio and data. The system offers a transmission range of up to 20km (12miles) with negligible delay and loss.

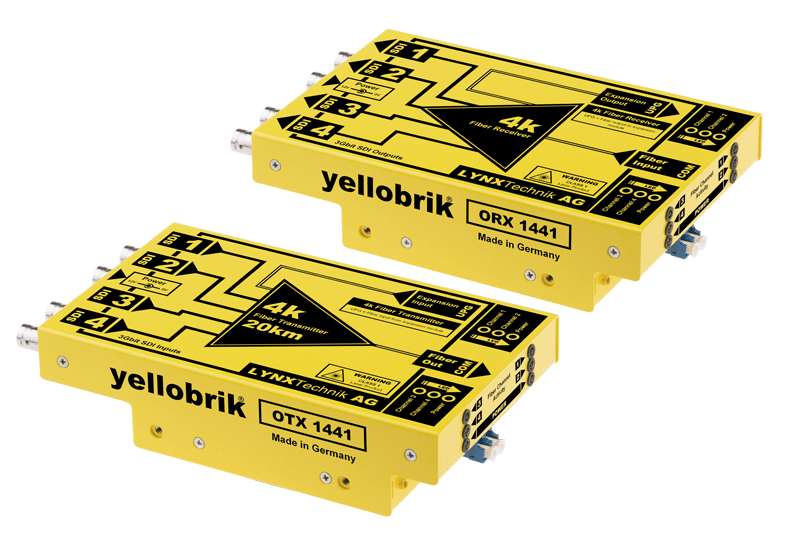

Each kit comprises a fibre transmitter (OTX -144X), a fibre receiver (ORX-144X) and two universal plug-top power supplies. SDI input and output is via BNC female connectors, fibre connections are LC. LED indicators are provided for SDI channel-presence and power. The units are housed in the familiar rugged yellobrik casing, with all instructions printed on the outside of each module.
A special expanded application is possible by using the OTR-1442 to combine the transport of 4K video, plus control data, either serial or Ethernet, for a remote camera/camera head or projector over a single fibre.
