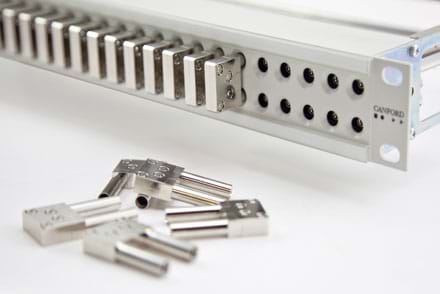

Canford are introducing the all new 12G 4K “microMUSA” range of patch panels, U-links and patchcords at IBC 2018. This wholly new micro video patching connector has been designed by Coax Connectors Ltd for Canford, with panels manufactured by Canford at our Portland, Dorset facility.
Exclusively available from Canford, the new microMUSA is based on the proven 3G MUSA that Canford has been manufacturing for nearly 20 years, but smaller, lighter and with 12G performance.
microMUSA patch panels are available in 2x32 and 2x48 1U formats, the design offers the highest patching density. The 32-way has standard BNC connectors at the rear, the 48-way has micro BNC connectors.
Performance exceeds the requirements of SMPTE ST 2082-1 making the microMUSA suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.
The jacks are mounted in vibration-resistant plastic blocks, which are mounted in a rigid aluminium extrusion. Snap-on designation strips are provided. The construction is similar to the full size MUSA design.
U-links have a cast metal body with finger grips, with a colour coding insert, again like the full size MUSA. Patchcords use Belden 1505F cable, and are available in a range of colours. A detent feature in the connectors ensures correct mating.
This new range will be particularly useful in OB trucks due to the reduced weight and space saving, whilst offering full 12G performance.
For more information visit Canford at IBC on stand 11.D01 or contact UK Sales: 0191 418 1122, International Sales: +44 191 418 1133.
Download the microMUSA flyer here
